WIP Project: Dragon eggs
(Note: W.I.P stands for Work In Progress. Posts tagged with WIP can be voted on here in order to encourage me to re-prioritize what to work on)
The Dragon egg project consists of trying to make a mould for wax casting cool fantasy candles. The first idea I had is of a simple candle wax egg, hence the name.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEh0SVHU-q3Zj0UaAuCdBy0mSIsZ-hRlstmhEDMaJRriQuJSdGgQ68p0ebSMgzT7Oh1PfAbtwagz9dLLDaNvN8pSYE_vpslsbX8RG3TcGqbQcbhNUDHVbrfWRucFRg4Vc9OstlzRxGyLiko/s640/Screenshot+2016-02-27+21.21.23.png) |

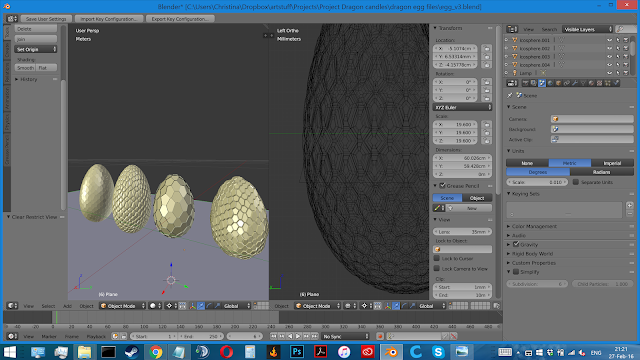

First attempts at a dragon egg model. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgZ-NhJaC56bMhYZii27wyn95VxK00SGralJ0FhBzkqVRsonsLOVzkqF7Zpwc-U9L_KyU5vyfitws6XNmiRb2tT7T1cQBeKV2_CgLhr94PNNQRqLfQ0J2ydNarz_Sqeev1iQB1zARW8asg/s640/Screenshot+2016-02-27+21.04.49.png) |

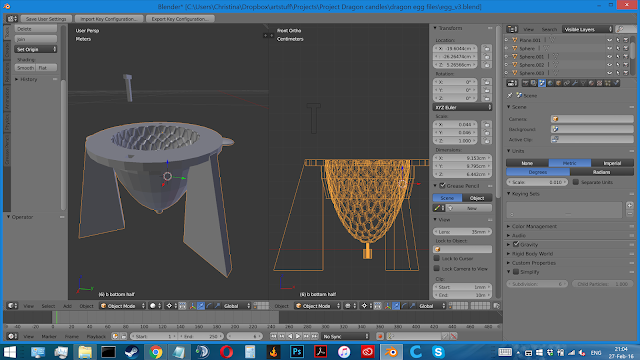

First attempt at a mould |
.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjdSVs6NgTu45fK52NZBMTA_E4xnbc4qUh-vXwQGRTL9T97e7g2D5kAbsjtvCeisww_b2xiDJnRNExY5O2Jvz8ULUbGPN15bo6Cbsc5tQMnrHLx3Ppvpj6PM-14fmgOl-alUBqAEPRoskk/s640/Screenshot+2016-02-27+21.07.37.png) |
Mould with tabs to ease opening, holes to line up the pattern, and notch to see how the parts are oriented. |
I expect the first version to have a few problems, mainly the pattern might be too detailed, and when trying to remove the candle from the mould I expect it to be stuck, I may have to print the model itself and do a latex cast of it instead of 3D print it directly. I want to 3D print and test it to be sure however, I won't know if it has failed before it has failed after all. Another problem is that it has overhangs and can't be printed in the orientation I wanted.
The next version I am working on will have arched legs stuck to a larger surface of the egg body, for strength and avoiding overhangs when 3D printing.
